Up to 300 m³/h
Up to 120 m
Self-Priming / Solids Handling

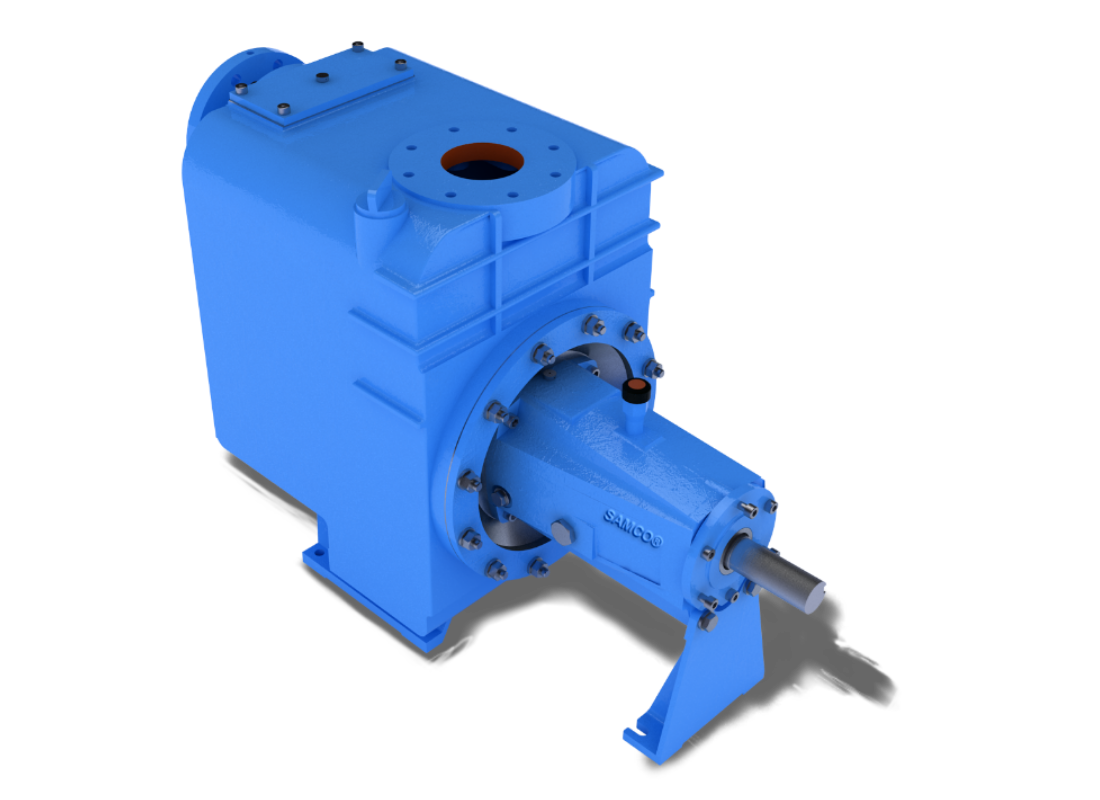

The SAMCO® SP Series is a solids-handling, self-priming centrifugal pump range designed for wastewater, mining, paper and industrial applications requiring reliable priming, efficient solids handling and simplified maintenance.
Engineered for demanding service conditions, the SP range delivers dependable hydraulic performance, reduced clogging risk and easy maintenance through its externally adjustable impeller clearance and back pull-out construction.
Durable elastomer check valve minimises re-priming time and ensures reliable suction performance.
Semi-open impeller design handles up to 76 mm spherical solids while maintaining hydraulic efficiency.
Rotating assembly and seal plate can be removed without disturbing suction or discharge piping.
Impeller clearance is adjusted externally without shims, eliminating the need for casing disassembly.
Cartridge-type bearing frame provides rigid shaft support for cooler operation and extended bearing life.
Performance Range Note: Values shown are range-level figures and not for a single pump size. Final performance depends on pump size, speed, impeller diameter and duty conditions.
Flow Range
Up to 300 m³/h
Head Range
Up to 120 m
Speed
Variable speed (650 – 2200 rpm)
Range of Sizes
3×3 – 6×6
Pump Type
Self-Priming Centrifugal
Construction

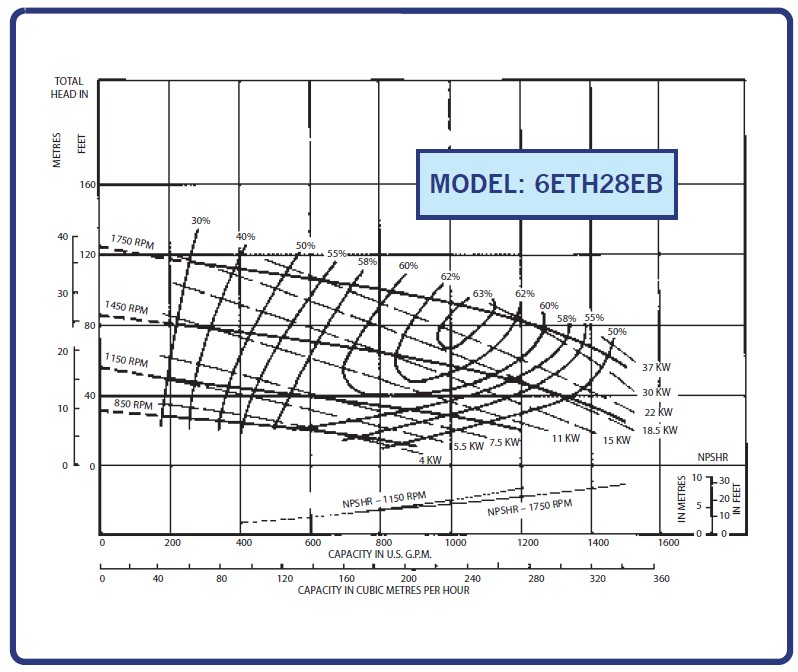

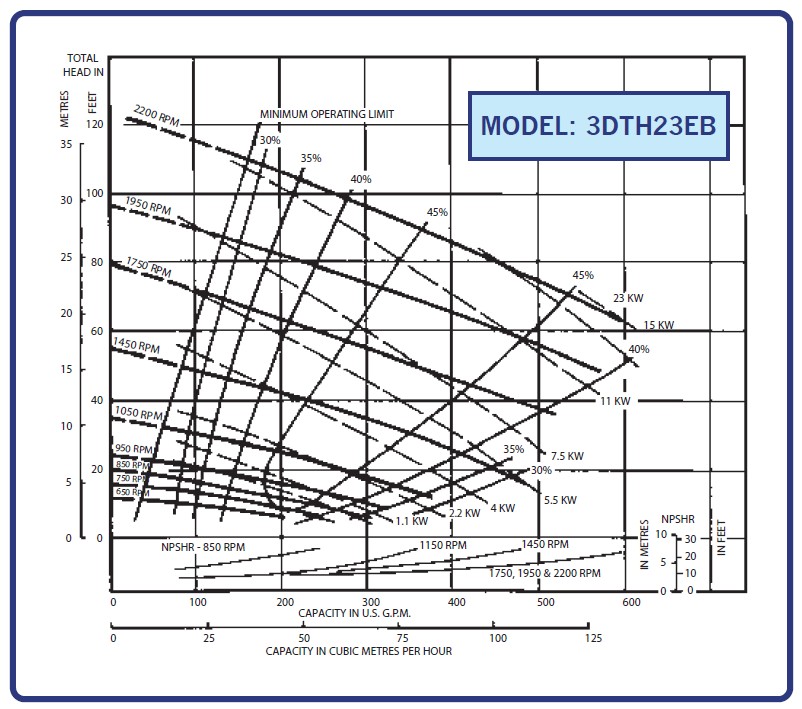

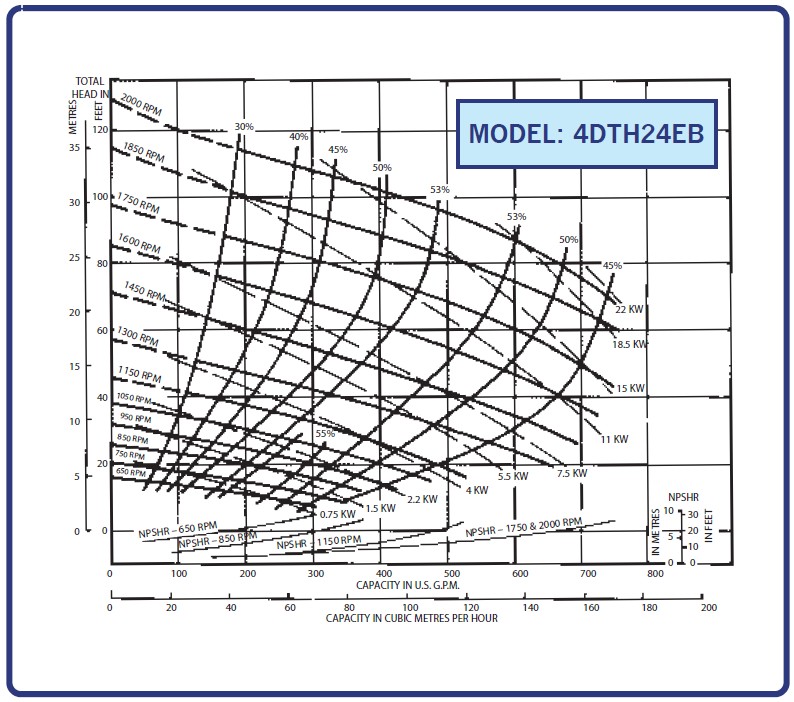

Performance curves are available across multiple pump sizes, impeller diameters and operating speeds to support accurate hydraulic selection and performance evaluation.
Detailed performance curves, dimensional drawings, 3D models and technical data are available on request.
Application engineering support and pump selection assistance available for process-specific duties.
Submit your operating conditions and our engineering team will confirm the optimal configuration for your application.
