Up to 1,700 m³/h
Up to 180 m
Municipal, commercial & industrial water service

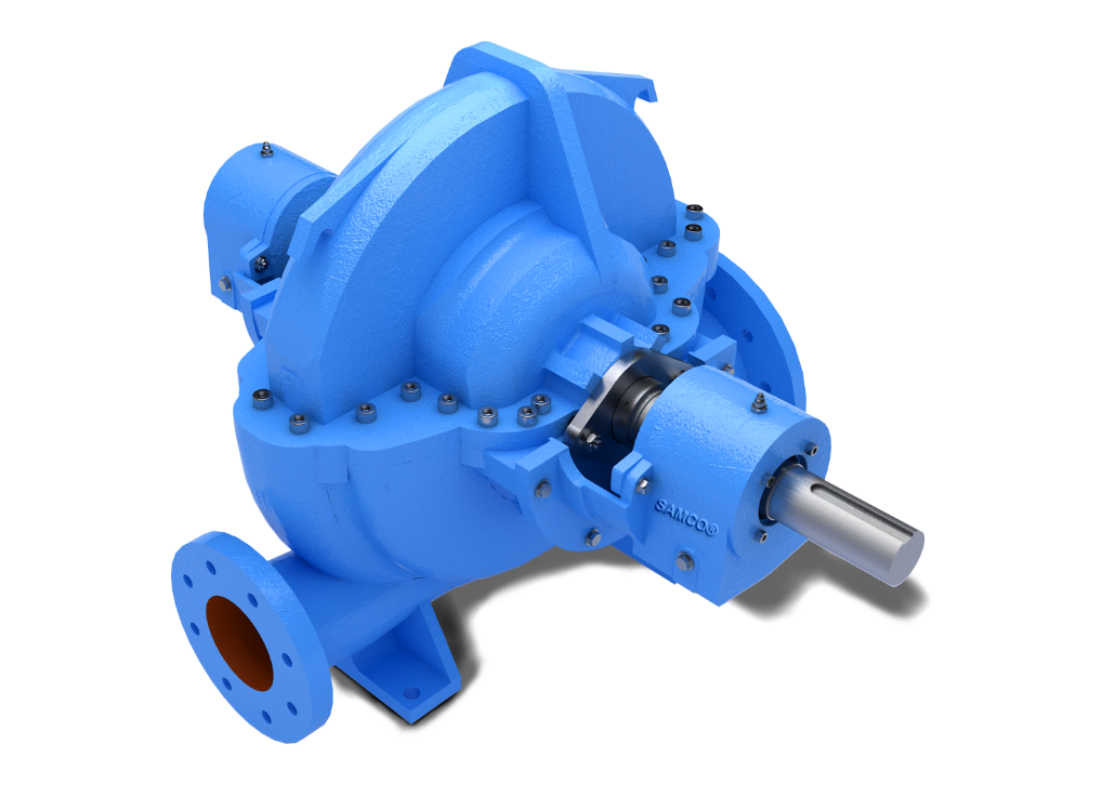

The SAMCO® HS90 Series is a horizontal split-case, double-suction pump range designed for municipal, commercial and industrial water applications requiring reliable, high-volume performance.
Featuring double volute casings, adjustable wear rings and flexible mounting configurations, the HS90 range delivers efficient hydraulic performance, simplified maintenance and extended service life.
Top casing removal simplifies inspection and maintenance.
Hydraulically balanced impeller design reduces axial thrust and improves efficiency.
Improves hydraulic stability and operating efficiency.
Maintain efficiency and extend component service life.
Can be mounted horizontally or vertically.
Common centreline flanges simplify installation and servicing.
Performance Range Note: Values shown are range-level figures and not for a single pump size. Final performance depends on pump size, speed, impeller diameter and duty conditions.
Flow
Up to 1,700 m³/h
Head
Up to 180 m
Speed
720 / 980 / 1450 rpm

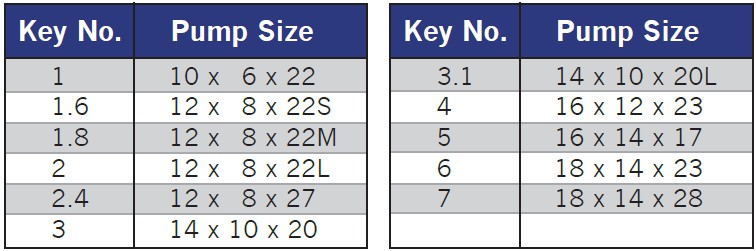

Sizes
10×6×22 – 16×12×23
Temperature
Up to 120°C
Pressure Rating
Up to 20 bar
Pump Type
Double-Suction Split-Case Design
Construction

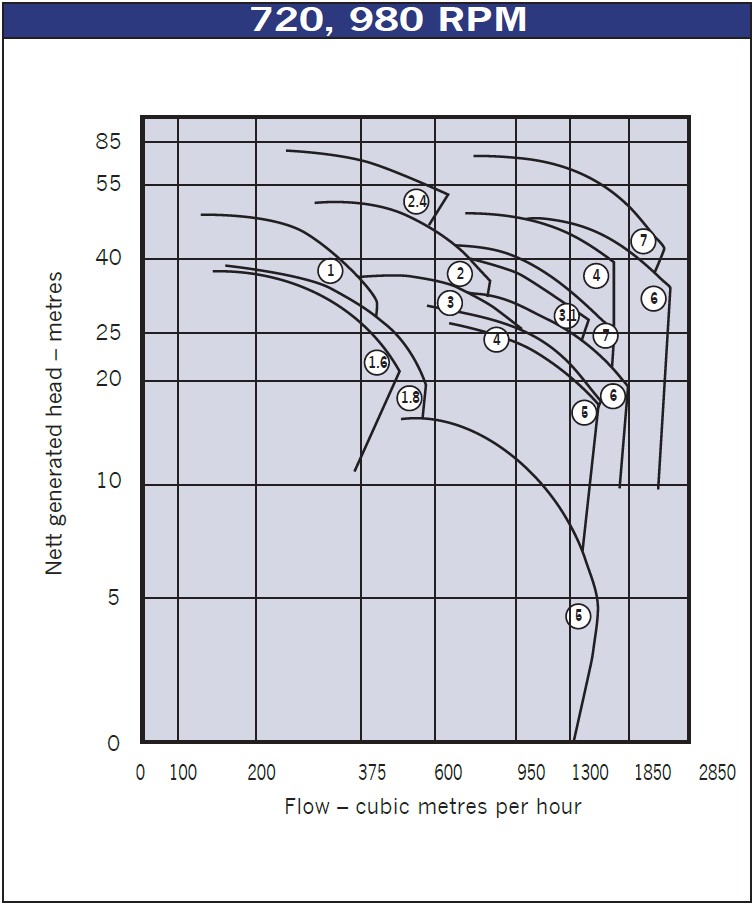

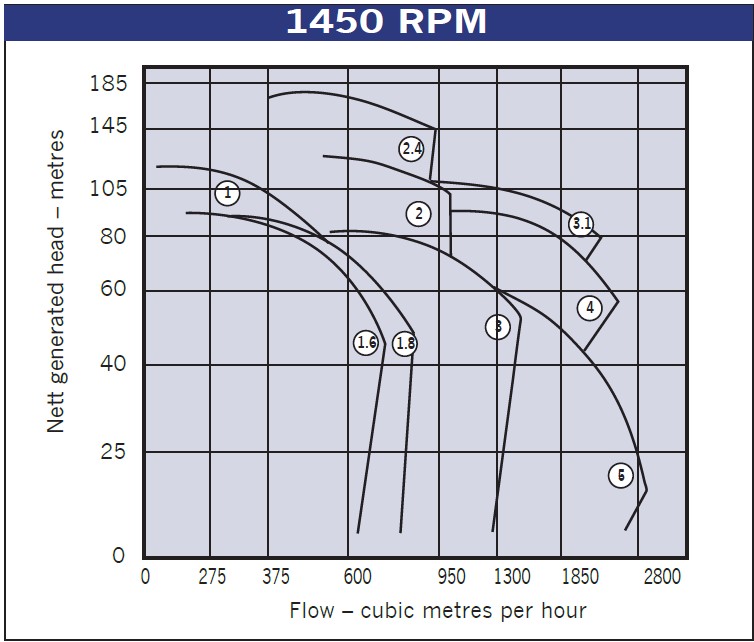

Performance curves are available across multiple pump sizes, impeller diameters and operating speeds to support accurate hydraulic selection and performance evaluation.
Detailed performance curves, dimensional drawings, 3D models and technical data are available on request.
Engineering support is provided for hydraulic verification and compliance review.
Submit your operating conditions and our engineering team will confirm the optimal configuration for your application.
