Up to 5,000 m³/h
Up to 30 m
High-Flow Wastewater Service

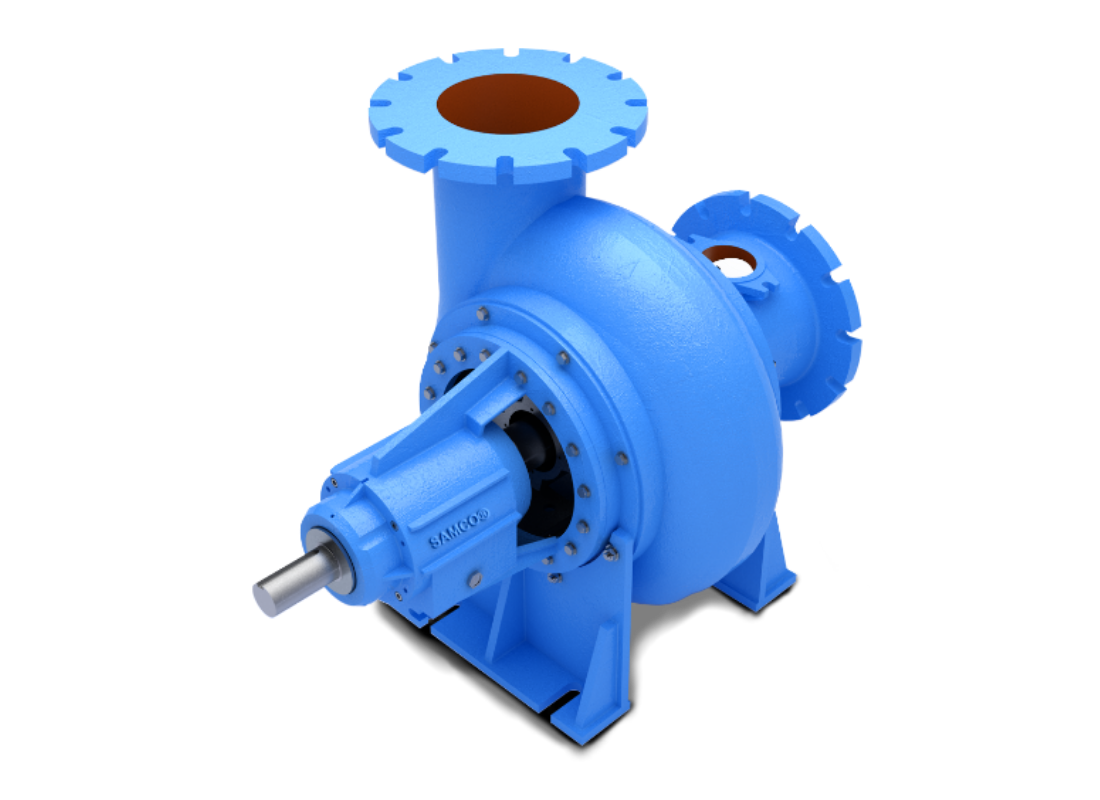

The SAMCO® CSY Series is a horizontal mixed-flow centrifugal pump designed for high-capacity handling of wastewater and other corrosive and non-corrosive liquids containing soft solids in suspension.
Engineered for municipal and industrial water services, the CSY combines mixed-flow hydraulic performance with a two-vane non-clog impeller design for efficient handling of high flow rates and soft solids in suspension.
Optimised for high-capacity, low-to-medium head liquid transfer in municipal and industrial applications.
Smooth flow passages allow large soft solids to pass without blockage.
Complete rotating assembly can be removed without disturbing suction or discharge piping.
Standardised components and four power frame groups reduce spare parts inventory across the range.
Discharge nozzle can be configured for clockwise or counter-clockwise rotation to suit piping layouts.
Replaceable alloy impeller wear rings and suction cover wear plates improve operating efficiency and service life.
Performance Range Note: Values shown are range-level figures and not for a single pump size. Final performance depends on pump size, speed, impeller diameter and duty conditions.
Flow Range
Up to 5,000 m³/h
Head Range
Up to 30m
Speed Range
600 / 900 / 1200 rpm
Sizes
10x10x13.5 – 24x24x30
Pump Type
Two-vane non-clog mixed-flow design
Construction
Alloy options to suit corrosive or non-corrosive service

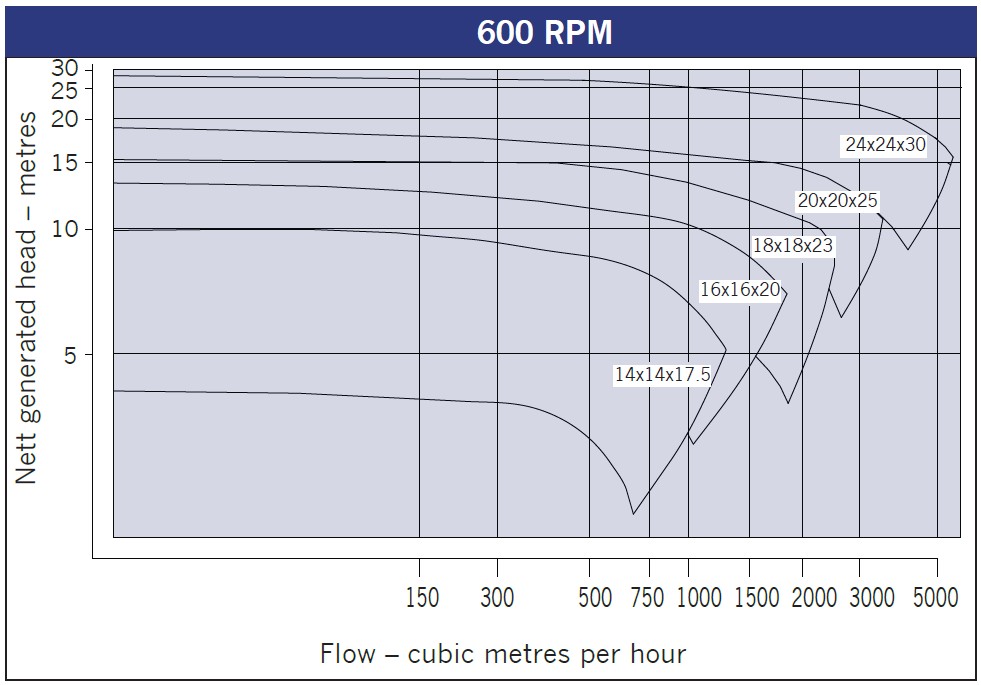

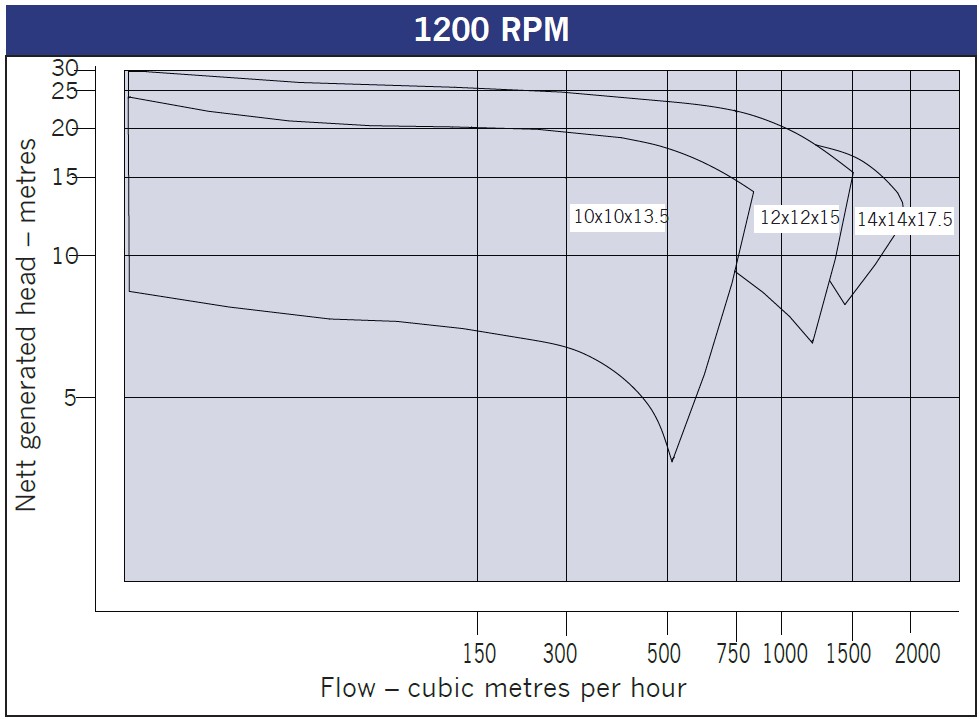

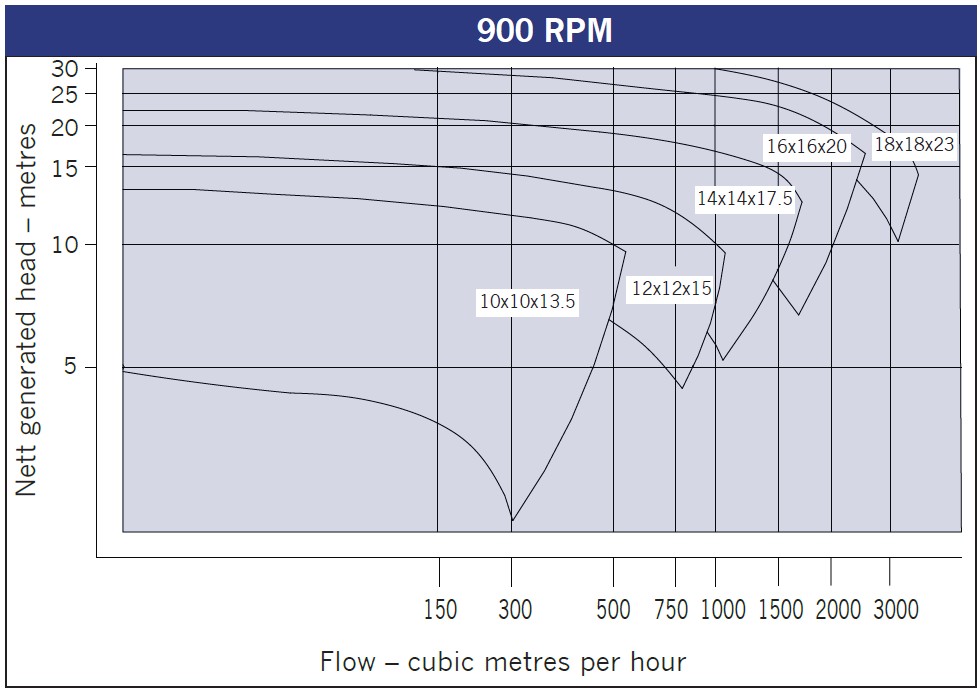

Performance curves are available across multiple pump sizes, impeller diameters and operating speeds to support accurate hydraulic selection and performance evaluation.
Detailed performance curves, dimensional drawings, 3D models and technical data are available on request.
Application engineering support and pump selection assistance available for process-specific duties.
Submit your operating conditions and our engineering team will confirm the optimal configuration for your application.
