Up to 1,800 m³/h
Up to 60 m
Wastewater & Soft Solids Handling

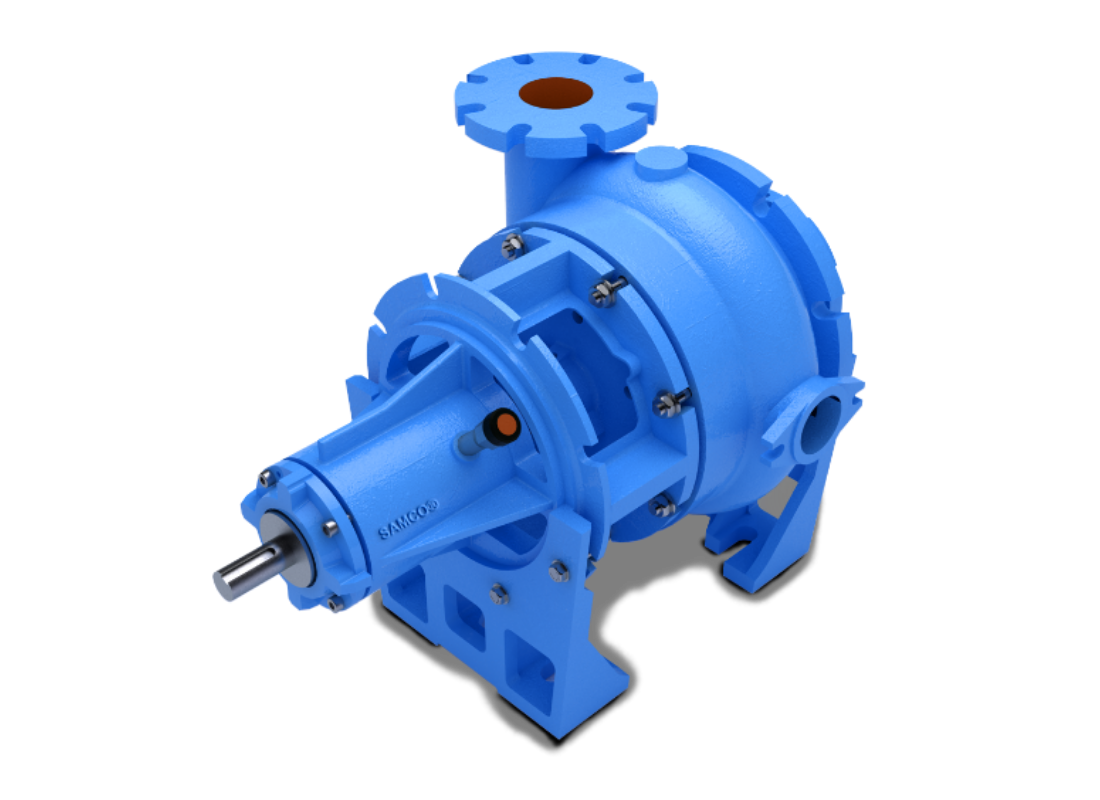

The SAMCO® CSW Series is a non-clog centrifugal pump designed to handle wastewater and other non-corrosive liquids containing soft solids in suspension.
Featuring a two-vane non-clog impeller and smooth water passages, the CSW provides dependable performance in municipal water, industrial wastewater treatment and food processing applications.
Designed for dependable operation, simplified maintenance and long service life in municipal water, industrial wastewater treatment and food processing applications.
Smooth water passages allow soft solids to pass without clogging. Impellers are available in clockwise and counter-clockwise configuration.
Rotating assembly can be removed without disturbing suction or discharge piping.
Accepts either packing or mechanical seal.
Reduces maintenance cost and extends casing life.
Eighteen pump sizes built on only five power frames to reduce spares inventory.
Large diameter shafts minimise deflection and increase bearing and packing life.
Performance Range Note: Values shown are range-level figures and not for a single pump size. Final performance depends on pump size, speed, impeller diameter and duty conditions.
Flow
Up to 1,800 m³/h
Head
Up to 60m
Speed
720 / 970 / 1450 rpm
Sizes
4x4x10 – 12x12x21
Design Standard
Single-stage enclosed non-clog impeller design
Construction
Cast iron standard with alloy configurations available

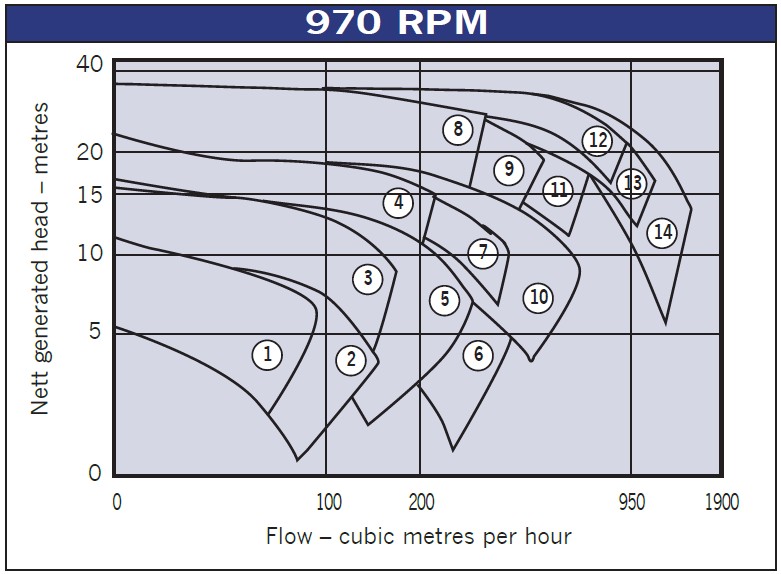

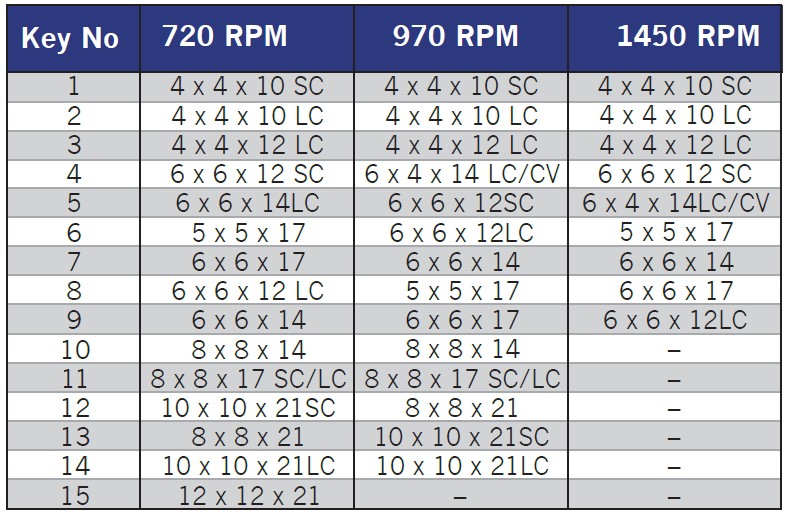

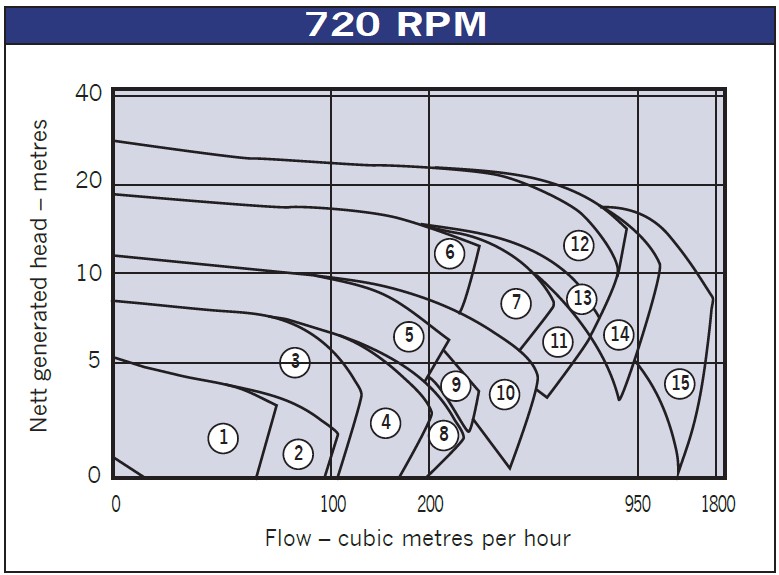

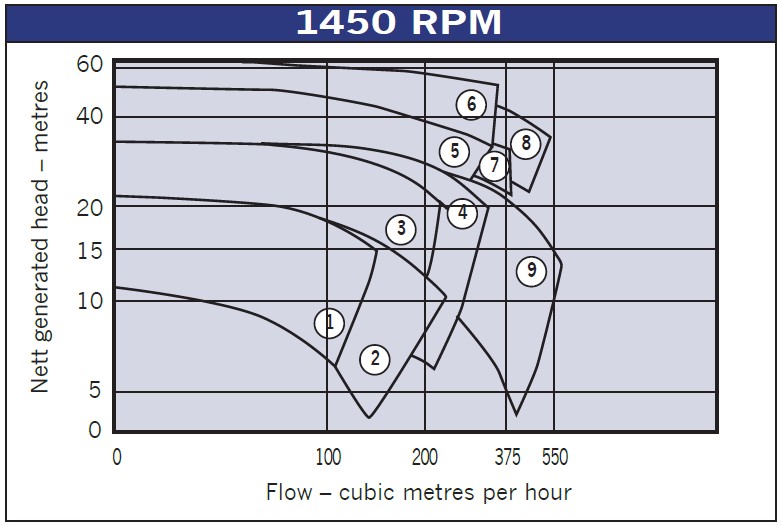

Performance curves are available across multiple pump sizes, impeller diameters and operating speeds to support accurate hydraulic selection and performance evaluation.
Detailed performance curves, dimensional drawings, 3D models and technical data are available on request.
Engineering support is provided for hydraulic verification and compliance review.
Submit your operating conditions and our engineering team will confirm the optimal configuration for your application.
