Up to 1,365 m³/h
Up to 107 m
Fibrous Solids Handling

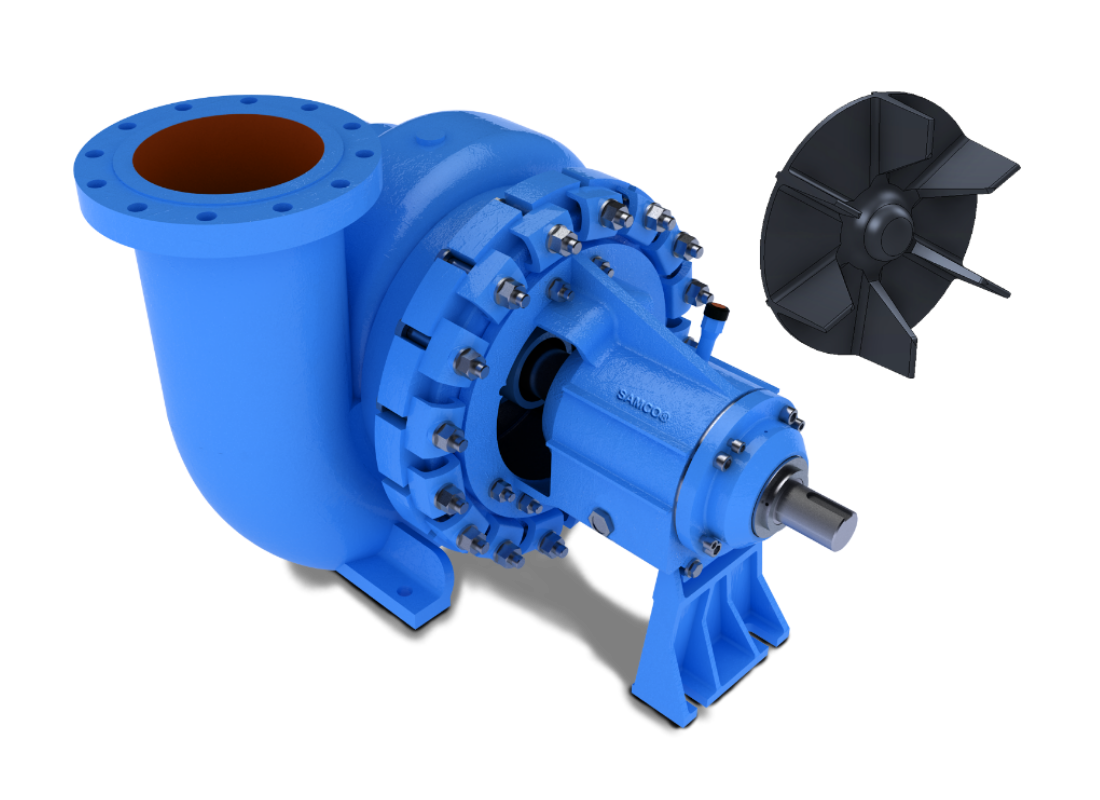

The SAMCO® CPX/HMX Series is a single-stage Shearpeller non-clog process pump featuring the patented Shearpeller impeller design for handling large stringy or fibrous solids, entrained air and highly viscous slurries.
Engineered for applications that are too severe for conventional centrifugal solids-handling pumps, the CPX | HMX combines shear action with conventional lift forces to deliver reliable performance in the most demanding industrial environments.
*Designed for applications too severe for conventional solids-handling centrifugal pumps.
Combines shear forces with conventional lift forces to pass large fibrous solids without clogging.
Capable of handling up to 26% entrained air by volume.
Unobstructed passages allow material entering the suction nozzle to pass through the pump.
Improves air evacuation and operational stability.
Capable of passing solids up to 114 mm in size.
Existing CPP, CPW and HM pumps can be converted to CPX/HMX configurations using conversion components.
Performance Range Note: Values shown are range-level figures and not for a single pump size. Final performance depends on pump size, speed, impeller diameter and duty conditions.
Flow Range
Up to 1,365 m³/h
Head Range
Up to 107 m
Speed Range
970 / 1450 RPM

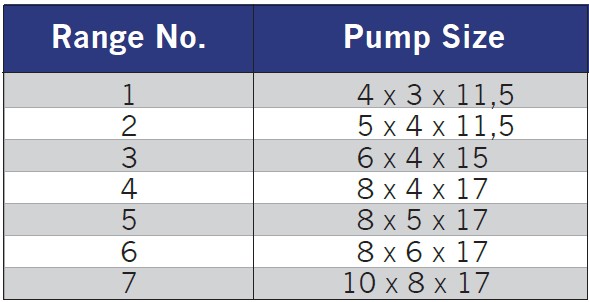

Sizes
4 x 3 x 11.5 – 10 x 8 x 17
Pump Type
Patented Shearpeller solids-handling design
Construction
Alloy configurations to suit abrasive and corrosive services

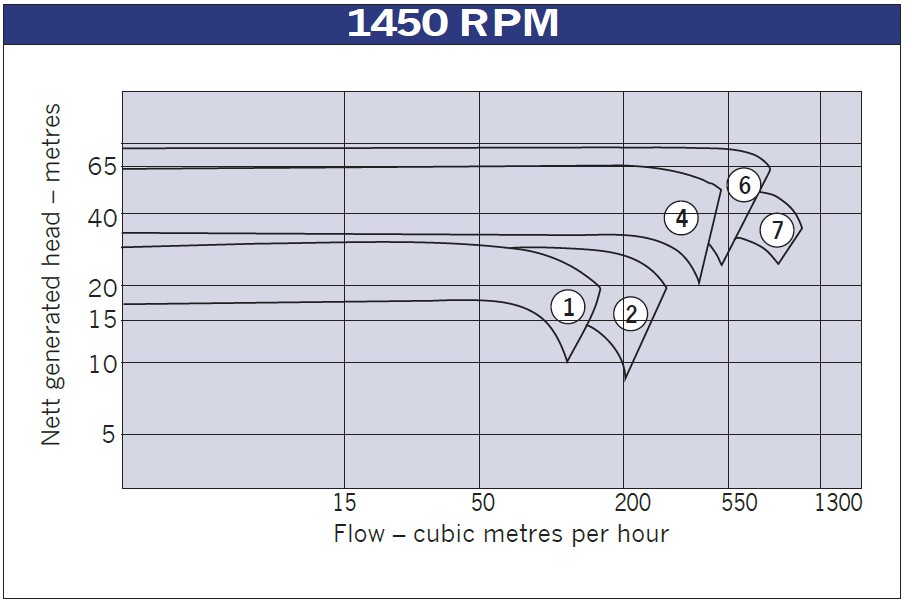

Performance curves are available across multiple pump sizes, impeller diameters and operating speeds to support accurate hydraulic selection and performance evaluation.
Detailed performance curves, dimensional drawings, 3D models and technical data are available on request.
Application engineering support and pump selection assistance available for process-specific duties.
Submit your operating conditions and our engineering team will confirm the optimal configuration for your application.
