Up to 4,000 m³/h
Up to 100 m
Open Impeller Process Service

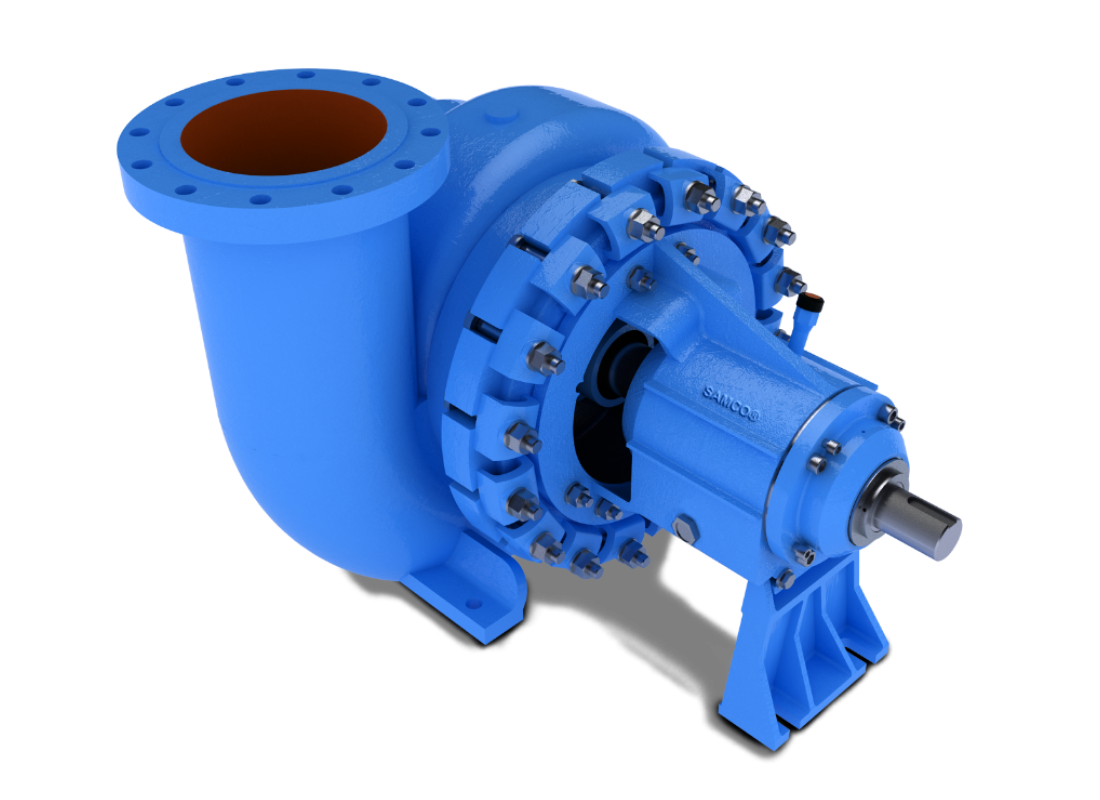

The SAMCO® CPW Series is a single-stage, open impeller process pump designed for handling pulpy and fibrous solids in suspension, as well as corrosive and non-corrosive liquids. Fully open impeller design improves solids handling while reducing clogging and air binding.
Engineered for reliable solids handling, the CPW combines robust mechanical construction, adjustable impeller clearance and simplified maintenance to maximise uptime in heavy-duty process environments.
Balances hydraulic thrust loads, reducing stuffing box pressure and minimising clogging.
Impeller position can be externally adjusted to maintain efficiency as wear occurs.
Maintenance can be performed without disturbing pipework or driver alignment.
Eighteen pump sizes built around three robust power frame assemblies to maximise interchangeability and reduce spare parts inventory.
Integral casing feet provide rigid support and help maintain coupling alignment.
Designed for packing, mechanical seal or dynamic seal arrangements with simplified maintenance access.
Performance Range Note: Values shown are range-level figures and not for a single pump size. Final performance depends on pump size, speed, impeller diameter and duty conditions.
Flow Range
Up to 4,000 m³/h
Head Range
Up to 100m
Speed Range
970 / 1450 RPM

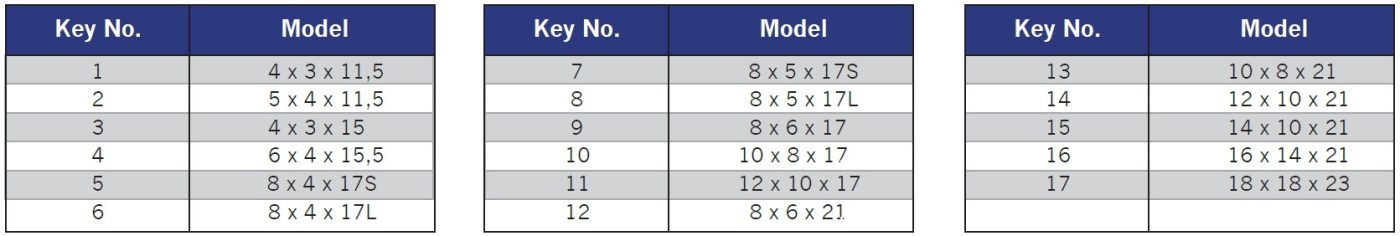

Sizes
4 x 3 x 11.5 – 18 x 18 x 23
Pump Type
Single-stage open impeller process pump
Construction

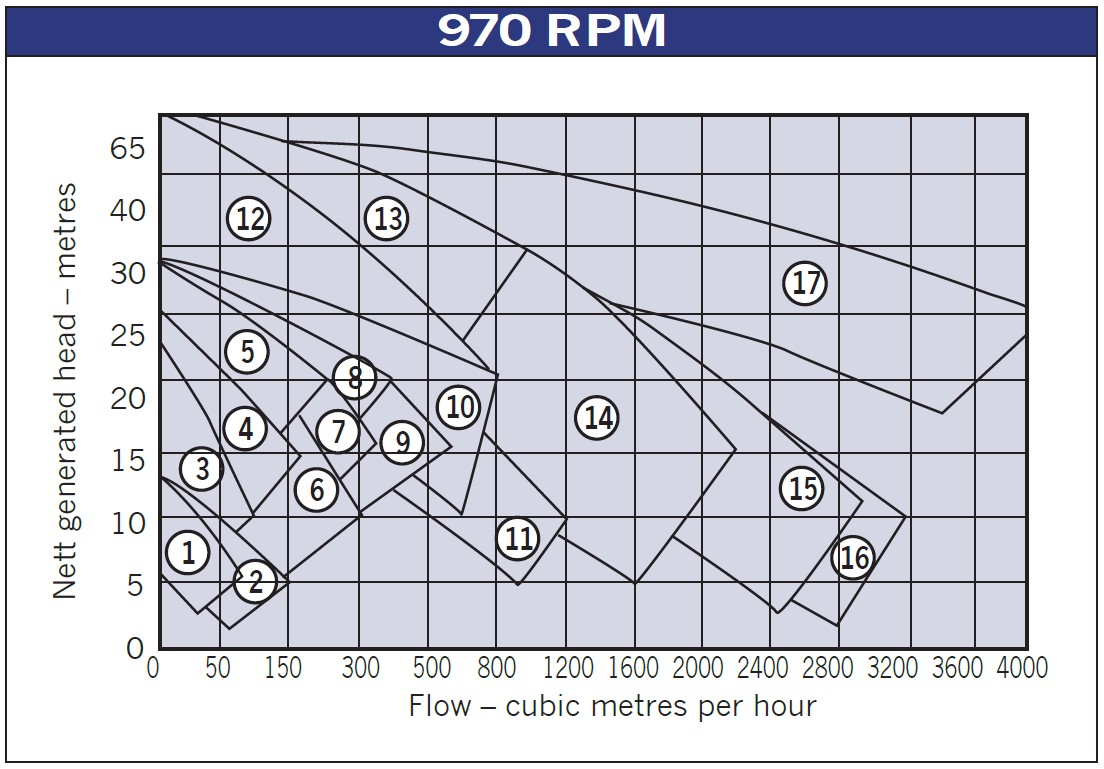

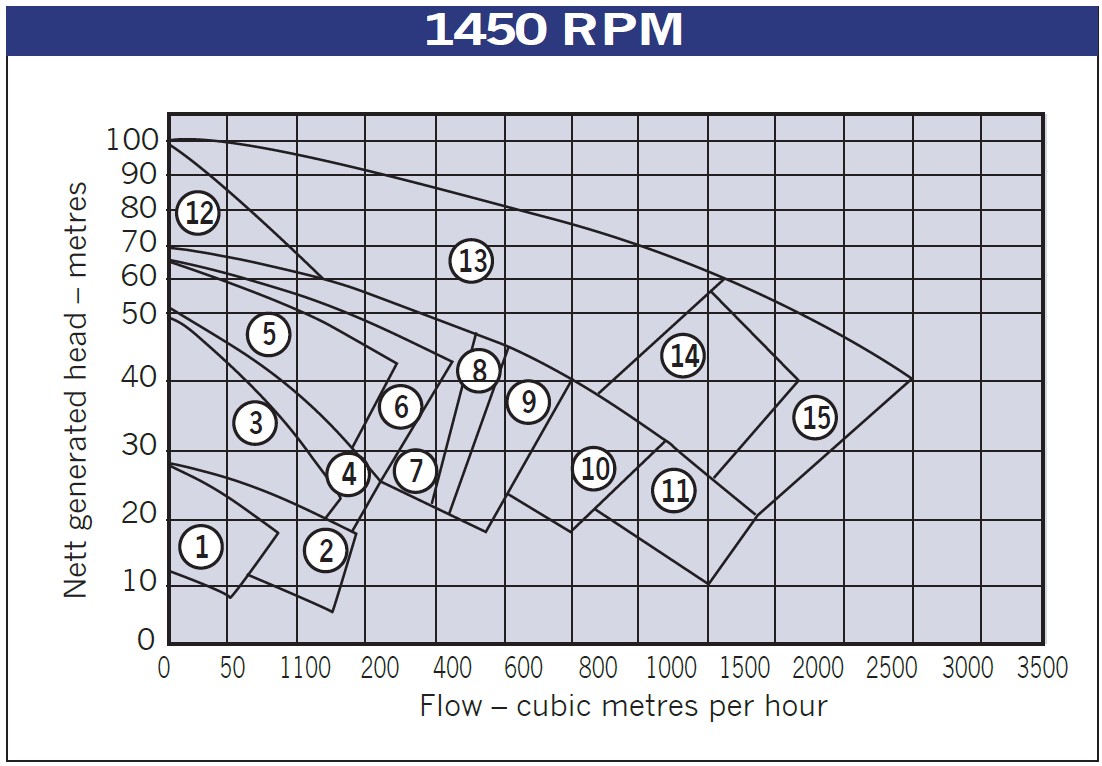

Performance curves are available across multiple pump sizes, impeller diameters and operating speeds to support accurate hydraulic selection and performance evaluation.
Detailed performance curves, dimensional drawings, 3D models and technical data are available on request.
Application engineering support and pump selection assistance available for process-specific duties.
Submit your operating conditions and our engineering team will confirm the optimal configuration for your application.
