Up to 1,000 m³/h
Up to 150 m
Heavy Duty Chemical Process Duty
The SAMCO® CP7 Series is a heavy-duty horizontal end suction process pump range engineered for demanding chemical and industrial process applications requiring reliable continuous operation and simplified maintenance.
Exceeding ANSI B73.1 dimensional standards, the CP7 Series combines robust construction, hydraulic efficiency and simplified maintenance to deliver long-term performance in demanding process applications.
Designed beyond minimum ANSI dimensional requirements for enhanced structural integrity.
Robust casing and bearing frame construction engineered for demanding industrial process duties.
Simplified component layout reduces maintenance intervention and downtime.
Common bearing frame configurations help reduce spare part holding and simplify maintenance planning.
Impeller design optimised for stable performance and reduced operating costs.
Angular-contact thrust and cylindrical roller bearings for extended service life.
Performance Range Note: Values shown are range-level figures and not for a single pump size. Final performance depends on pump size, speed, impeller diameter and duty conditions.
Flow Range
Up to 1,000 m³/h
Head Range
Up to 150 m
Speed Range
970 / 1475 / 2920 RPM
Sizes
1×0.75×6 – 10×8×15
Pump Type
Heavy-duty ANSI process pump design
Construction

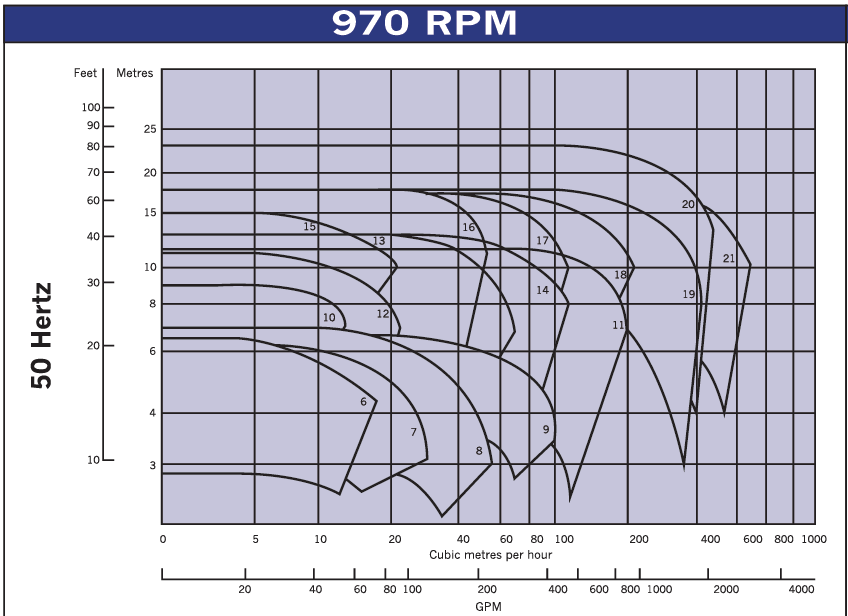

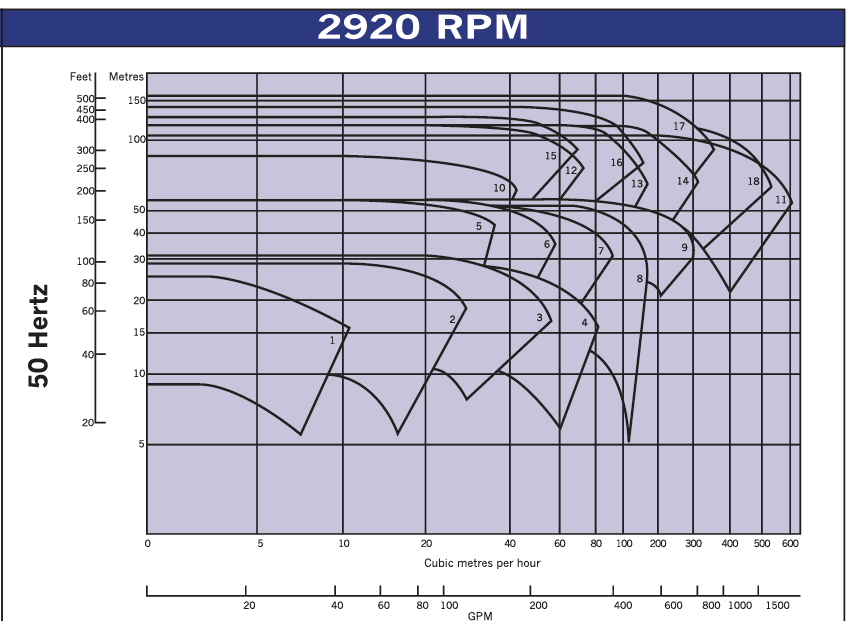

Performance curves are available across multiple pump sizes, impeller diameters and operating speeds for accurate hydraulic selection.
Detailed performance curves, dimensional drawings, 3D models and technical data are available on request.
Application engineering support and pump selection assistance available for process-specific duties.
Submit your operating conditions and our engineering team will confirm the optimal configuration for your application.
