Up to 1,000 m³/h
Up to 150 m
Chemical & Industrial Process Duty

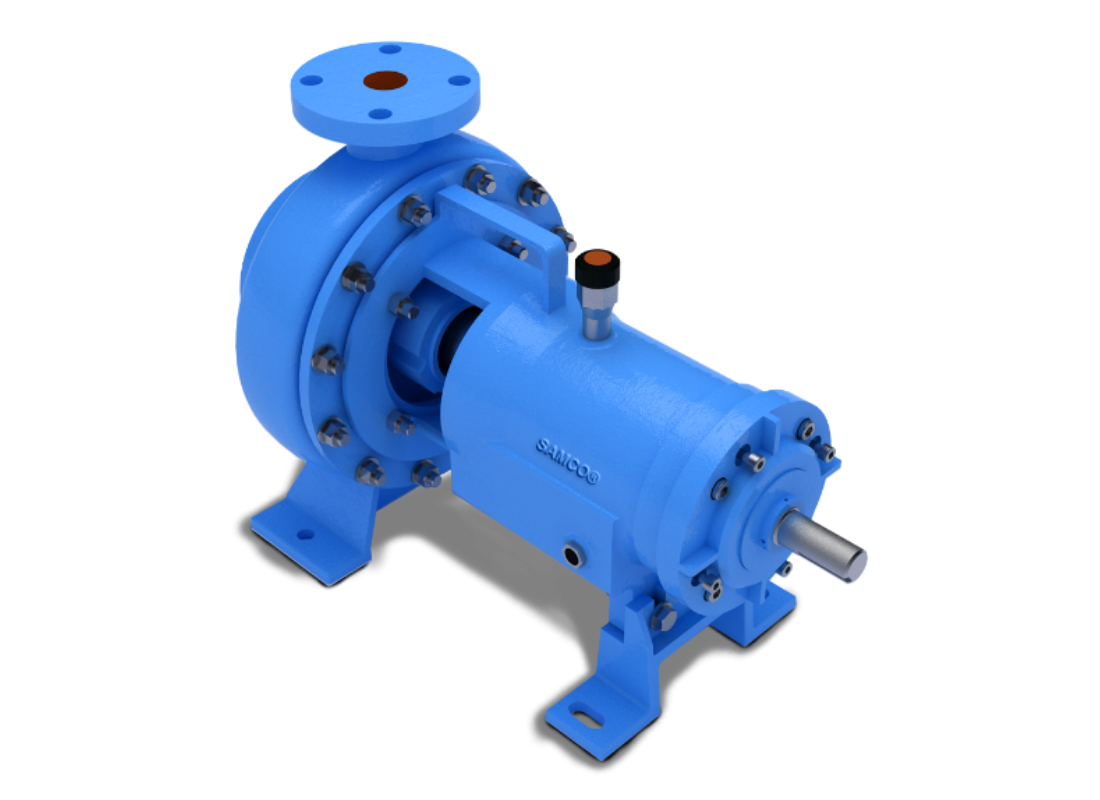

The SAMCO® CP/CPO Series are horizontal end suction chemical process pumps designed for demanding industrial applications requiring reliability, corrosion resistance and ANSI dimensional compliance.
The range offers open impeller design, back pull-out construction, shaft sleeve protection and application-specific material configurations to support long-term performance and simplified maintenance.
Fully compliant dimensional configuration for chemical process installations.
Allows maintenance without disturbing pipework or motor alignment.
Open impeller design reduces stuffing box pressure while improving solids handling characteristics.
Replaceable casing wear plates reduce maintenance cost and maintain internal clearances.
Three frame sizes provide high parts interchangeability and simplified spares management.
Double row outboard bearings support radial and axial loads for extended service life.
Performance Range Note: Values shown are range-level figures and not for a single pump size. Final performance depends on pump size, speed, impeller diameter and duty conditions.
Flow Range
Up to 1,000 m³/h
Head Range
Up to 150 m
Speed Range
970 / 1450 / 2900 RPM

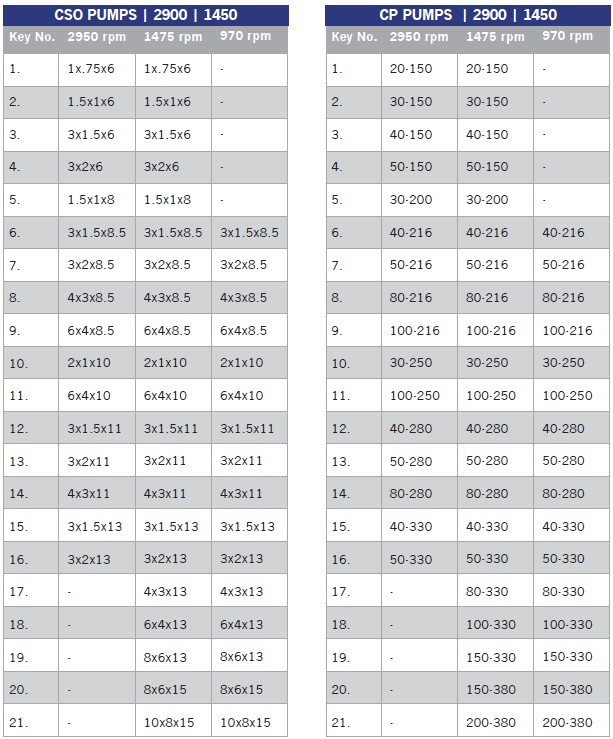

Range of Sizes
1 x 0.75 x 6 – 10 x 8 x 15
Design Standard
Based on ANSI B73.1
Construction

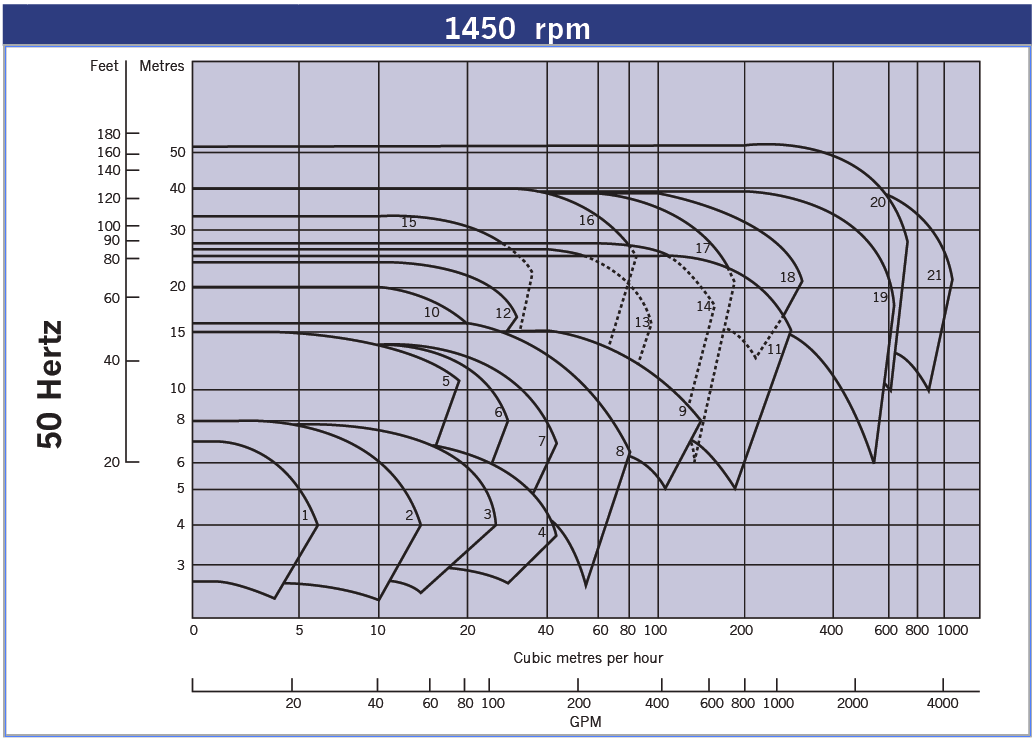

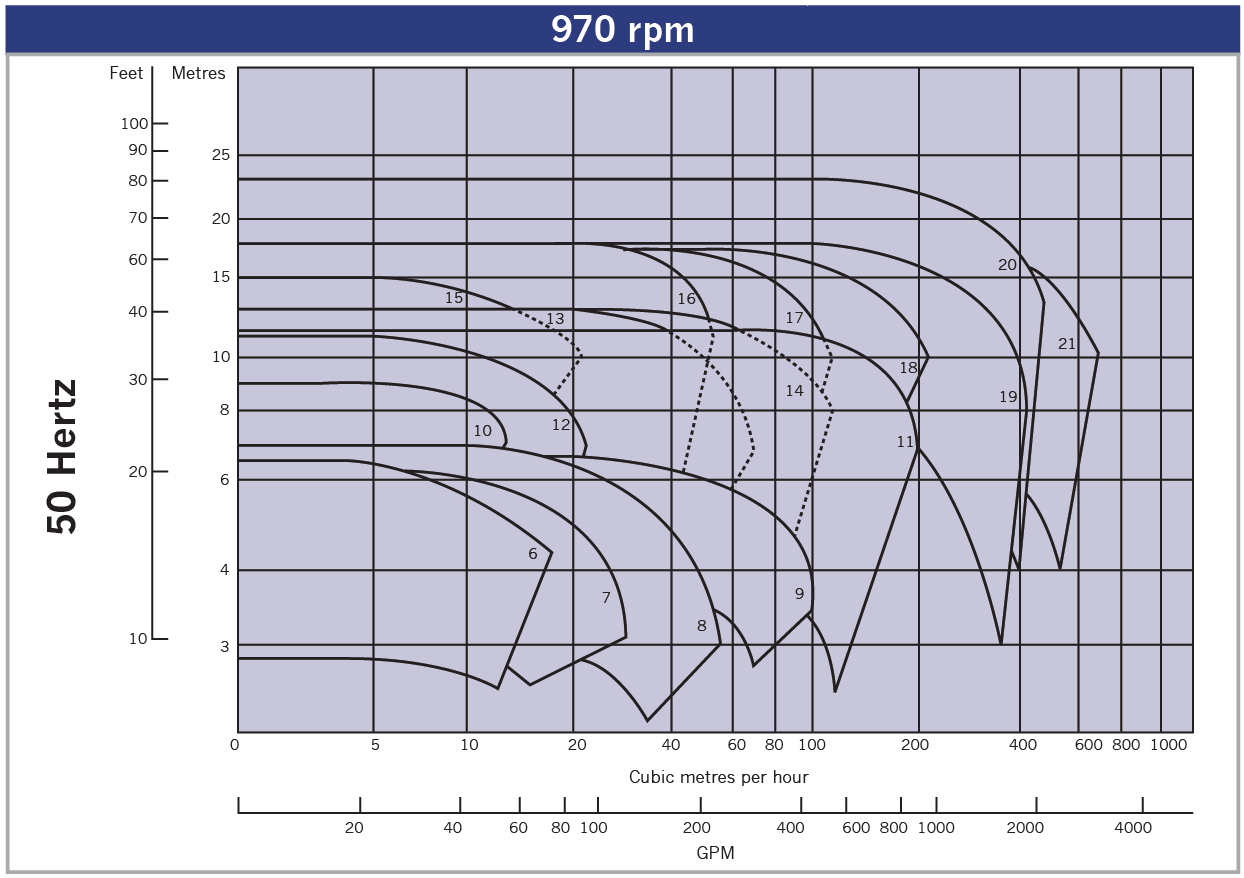

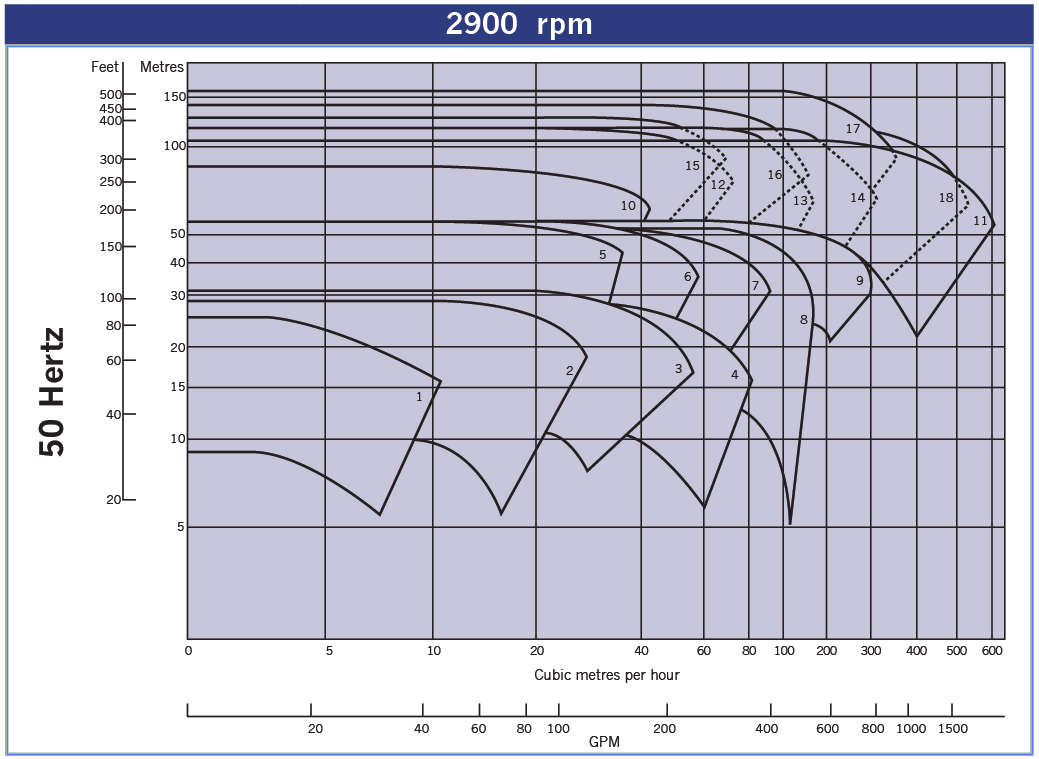

Performance curves are available across multiple pump sizes, impeller diameters and operating speeds to support accurate hydraulic selection and performance evaluation.
Detailed performance curves, dimensional drawings, 3D models and technical data are available on request.
Application engineering support and pump selection assistance available for process-specific duties.
Submit your operating conditions and our engineering team will confirm the optimal configuration for your application.
